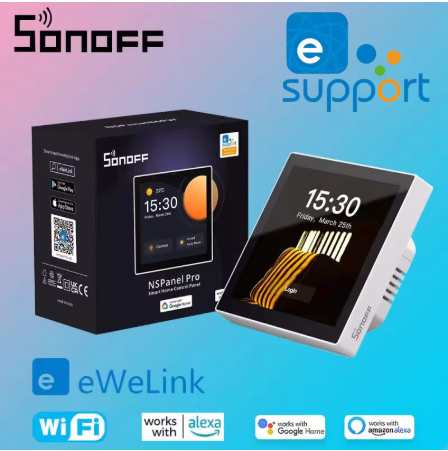

SONOFF NSPanel Pro Gen2 Smart Home Control Panel (86 Type)
SONOFF NSPanel Pro Gen2 Smart Home Control Panel (86 Type)
- Wi‑Fi
- 86-box fit
- Built-in Zigbee gateway
- Cash on Delivery
- Original SONOFF
- Karachi support
- WhatsApp 0301-9365882
Delivery: Karachi 1–3 working days · Pakistan 2–5 working days · Rs 250 (free from Rs 10,000)
The second-generation NSPanel Pro: a wall control panel with a built-in 2-channel relay, Zigbee 3.0 gateway and Matter bridge. Fits the standard 86-type wall box used across Pakistan.
Key features
- 2-channel relay replaces a 2-gang wall switch – fits standard back boxes and existing wiring
- Dual-band Wi-Fi, smart thermostat and energy monitoring
- 1.5W dual-array microphone and proximity wake-on-approach
- 2GB RAM + 32GB storage – run apps such as a Home Assistant dashboard (via F-Droid)
- Built-in Zigbee 3.0 gateway (Silicon Labs EFR32MG24)
- Matter bridge for Zigbee and Wi-Fi devices
Compatibility & specs
| Models | NSPanel86PB-Relay (Dim Gray) / NSPanel86PW-Relay (White) |
|---|---|
| Connectivity | Wi-Fi IEEE 802.11 b/g/n/ac/ax 2.4 GHz & 5 GHz + Zigbee 3.0 |
| Matter | Yes — built-in Matter Bridge (bridges Zigbee/Wi-Fi devices into Matter ecosystems) |
| Hub / gateway | Built-in Zigbee 3.0 gateway (Silicon Labs EFR32MG24) — can also act as Zigbee router |
| Neutral wire required | Yes — terminals N (neutral) and L In (live); L Out1 / L Out2 for two loads |
| Wall box | 86-type, 86 × 86 × 39.5 mm |
| Relay / rating | 2-channel relay; 100–240V~ 50/60 Hz; max 5A per gang, 10A total (resistive load) |
| Screen | 3.95" capacitive touch, 480 × 480 |
| Memory | 2 GB RAM / 32 GB storage (F-Droid / Home Assistant app supported) |
| App | eWeLink (plus on-panel apps via F-Droid) |
| Works with | Apple Home / Siri, Amazon Alexa, Google Home, Home Assistant, Matter ecosystems (via Matter Bridge) |
Specs and wiring terminals from SONOFF official docs: help.sonoff.tech/docs/nspanel-pro-gen2.
What's in the box
Model: NSPanel Pro Gen2 86 Type — Dim Gray or White (choose in options)
- 1 × NSPanel Pro Gen2 control panel (colour as selected)
- Mounting hardware
- User documentation
Installation notes
Mains wiring and fitting must be done by a qualified electrician with power isolated at the breaker. We do not publish DIY live-wiring steps. Send a clear photo of your switch box or distribution board on WhatsApp 0301-9365882 if you want a fit check before ordering.
Availability is shown live when you select a variant — we do not quote static stock counts on this page. For returns and checking terms after delivery, see our Refund policy.
Which wiring do I need?
Needs live and neutral. The panel’s 2-channel relay can replace a 2-gang switch (L Out1 / L Out2). Electrician installation required. Not sure? Read our guide Neutral vs No-Neutral Smart Switches or send a photo of your switch box on WhatsApp.
Related: SONOFF M5 Matter · SONOFF ZBM5 Zigbee · SONOFF Zigbee Bridge Pro · All Smart Switches
Frequently asked questions
- Does it need a neutral wire? Yes. Official wiring uses N (neutral) and L In (live), plus L Out1/L Out2 for the two relay channels.
- Alexa and Google / Apple Home? Yes — through eWeLink and the built-in Matter Bridge for Matter-compatible apps.
- Wi-Fi or Zigbee? Both: dual-band Wi-Fi for the panel, plus a built-in Zigbee 3.0 gateway for sensors and switches. It is not a Thread border router; Thread is not claimed here.
- Delivery charges? Rs 250 across Pakistan on orders under Rs 10,000; free delivery from Rs 10,000.
- Cash on Delivery? Yes, COD is available across Pakistan. You can also order on WhatsApp 0301-9365882.
- Returns / checking? See our Refund policy for terms after delivery.
